Model Description

This section provides an overview of the physical processes and model structure implemented in pySnowClim.

Model Overview

pySnowClim is a physically-based energy balance snow model that simulates snow accumulation and melt. The model is implemented as a Python translation of the original SnowClim model written in MATLAB (Lute et al., 2022) , maintaining the same core physics while providing improved computational efficiency and modern data handling capabilities.

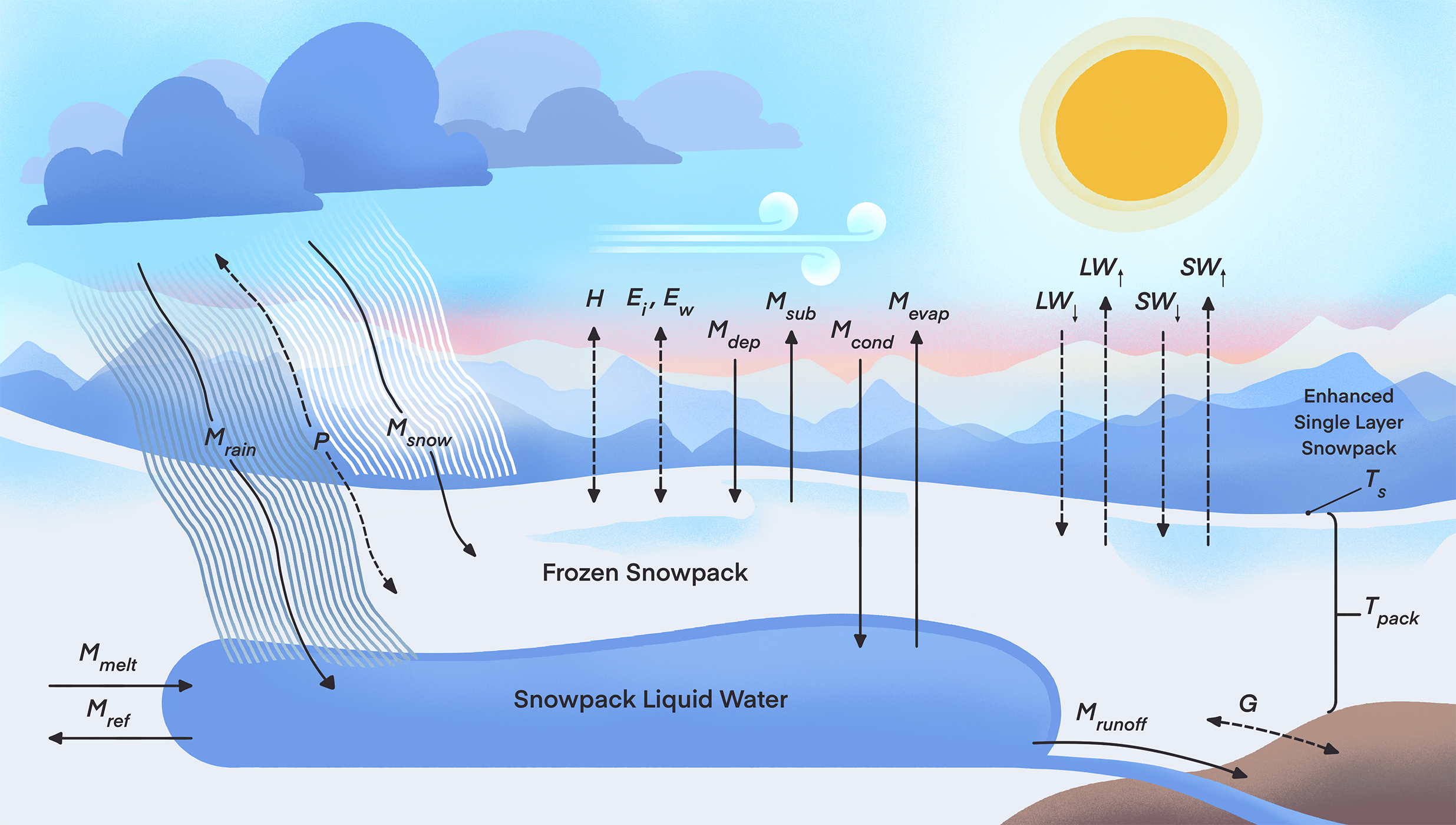

Snow model conceptual diagram. Solid black arrows indicate mass fluxes, and dashed black arrows indicate energy fluxes.

Core Model Philosophy:

The model operates on the principle that snow evolution is fundamentally controlled by energy exchanges at the snow surface. All physical processes (melting, sublimation, refreezing, densification) are driven by the surface energy balance, making the model suitable for a wide range of climatic conditions and applications.

Model Structure:

pySnowClim consists of three main components:

  1. Model Engine (snowclim_model.py): Core physics calculations and timestep processing

  2. Model Runner (runsnowclim_model.py): Data management, I/O operations, and model coordination

  3. Command Interface (run_main.py): Command-line interface for operational use

Fundamental Physics

Energy Balance Framework

The model is built around the surface energy balance equation:

\[Q_{net} = SW_{in} - SW_{out} + LW_{in} - LW_{out} + H + E_{i} + E_{w} + G + P\]

Where:

  • \(SW\) = shortwave radiation fluxes

  • \(LW\) = longwave radiation fluxes

  • \(H\) = sensible heat flux

  • \(E\) = latent heat flux of ice (i) and water (w)

  • \(G\) = ground heat flux

  • \(P\) = advected heat flux from precipitation

Mass Balance

Mass balance of the solid \((M_{s})\) and liquid \((M_{l})\) portions of the snowpack are governed by:

\[M_{s} = M_{snow} + M_{ref} - M_{melt} + M_{dep} - M_{sub}\]
\[M_{l} = M_{rain} - M_{ref} + M_{melt} - M_{runoff} + M_{cond} - M_{evap}\]

Where:

  • \(M_{snow}\) = mass of new snowfall

  • \(M_{ref}\) = mass of the snowpack liquid water that has been refrozen

  • \(M_{melt}\) = mass of snow that has melted

  • \(M_{dep}\) = mass of deposition

  • \(M_{sub}\) = mass of sublimation

  • \(M_{rain}\) = mass of rain added to the snowpack

  • \(M_{runoff}\) = mass of liquid water that has left the snowpack as runoff

  • \(M_{cond}\) = mass of condensation

  • \(M_{evap}\) = mass of evaporation

Model Implementation

Core Model Engine

File: snowclim_model.py

The main model engine implements the physics through the run_snowclim_model() function, which processes each timestep through several phases:

1. Precipitation Processing

Determines rain/snow partitioning using temperature and humidity:

  • Logistic regression model separates rain from snow

  • Fresh snow density calculated from air temperature

  • New snow temperature and cold content computed

2. Energy Balance Calculation

Computes all surface energy flux components:

  • Shortwave radiation (accounting for albedo)

  • Longwave radiation (Stefan-Boltzmann law)

  • Turbulent fluxes (bulk aerodynamic formulas)

  • Ground heat flux (constant value)

  • Precipitation heat flux

3. Energy Distribution

Available energy is allocated sequentially:

  • Cold Content: Energy to warm snowpack to 0°C

  • Refreezing: Energy to refreeze liquid water

  • Melting: Energy to melt snow/ice

  • Sublimation: Mass exchange with atmosphere

4. State Updates

Physical properties are updated:

  • Snow density evolution through compaction

  • Liquid water content and drainage

  • Surface albedo changes

  • Internal snowpack temperature

Key Model Features

Albedo Parameterizations

Three albedo options accommodate different applications:

  • Option 1: Essery et al. (2013)

  • Option 2: Utah Energy Balance (UEB)

  • Option 3: VIC model

Snow Density Evolution

Realistic density changes through:

  • Fresh snow density as function of temperature

  • Compaction based on overburden pressure and temperature

  • Density updates after new snowfall events

Advanced Energy Balance

Energy processing includes:

  • Atmospheric stability corrections for turbulent fluxes

  • Energy smoothing to reduce numerical instabilities

  • "Cold content tax" system for improved convergence

  • Multiple measurement height corrections

Liquid Water Processes

Comprehensive liquid water handling:

  • Rain-on-snow events

  • Internal liquid water storage and drainage

  • Refreezing when snowpack has cold content

  • Runoff generation with realistic drainage rates

Snow Tower Management

Optional radiation enhancement to reduce excessive snow accumulation:

  • Downward longwave radiation is enhanced by a multiplicative factor when snowpack exceeds a threshold during specified months to increase energy available for melt

  • Implementation is controlled by four adjustable parameters:

    • max_swe_height: SWE threshold above which radiation enhancement should be implemented

    • downward_longwave_radiation_factor_start_month: first month to consider applying radiation enhancement

    • downward_longwave_radiation_factor_end_month: last month to consider applying radiation enhancement

    • downward_longwave_radiation_factor: multiplicative factor applied to downward longwave radiation when SWE threshold is exceeded and month requirement is met

  • Mimics the change in energy balance that would result following downslope movement of excessive snowpack via gravitational or wind redistribution or glacier flow

Model Validation and Applications

Scientific Basis

pySnowClim physics are based on established snow science literature:

  • Energy balance formulations from classical snow physics texts

  • Parameterizations from peer-reviewed publications

  • Validation against field observations and other snow models

  • Calibration using SNOTEL network data across western United States

Appropriate Applications

The model is suitable for:

  • Research: Detailed energy balance studies and process investigations

  • Operations: Water resource forecasting and management

  • Education: Teaching snow physics and energy balance concepts

  • Climate Studies: Long-term snow evolution under changing conditions

  • Spatial Scales: Point locations to continental domains

  • Temporal Scales: Sub-daily to multi-decadal simulations

  • Environments: All snow climates from maritime to continental

Model Limitations

Physical Limitations:

  • Single-layer snowpack with separate surface and pack temperatures (but no internal temperature gradients)

  • No explicit snow grain evolution

  • Vegetation not included

  • Ground heat flux assumed constant

  • No snow redistribution via gravity or wind

For comprehensive scientific background, algorithm details, and validation results, please refer to the original SnowClim publication (Lute et al., 2022).
